Unique Mixproof CIP

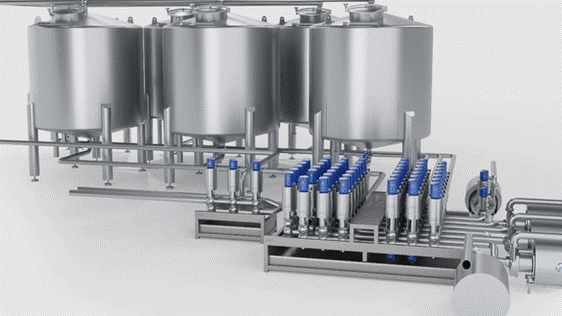

Efficiently manage Cleaning-in-Place (CIP) media at critical system distribution points with the Alfa Laval Unique Mixproof CIP valve. Purpose-built for CIP media routing, this lightweight, double-block-and-bleed valve ensures CIP line safety. It directs pressurized cleaning fluids toward the area that requires cleaning without the risk of cross-contamination. This versatile CIP valve adapts to process requirements while meeting hygiene standards.
Purpose-built double seat valve for safe, reliable and cost-efficient routing of CIP media
- Get the product safety you need by eliminating the risk of cross-contamination
- Enhance the reliability and flexibility of your process and CIP setup during operation
- Minimize the risk of unplanned downtime and time and resources spent on routine maintenance
- Improve sustainability and limit environmental impact by reducing the use of water and CIP media
- Lower the total cost of ownership with a proven, cost-efficient mixproof valve for routing cleaning media
Efficiently fill, empty and clean your processing and CIP lines without the risk of contamination with the Alfa Laval Unique Mixproof CIP valve. Cost-efficient double block and bleed valve protects product safety when operating, forwarding or reversing the flow of CIP media.

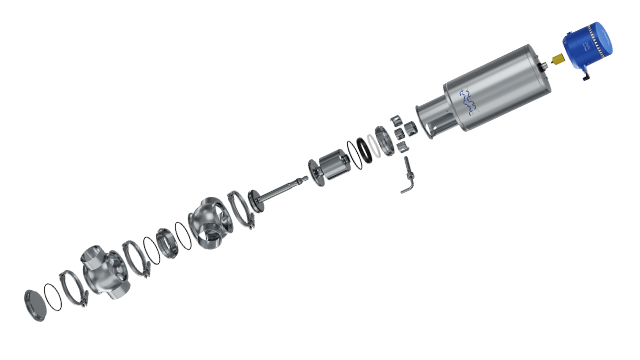

Its modular design makes it easy to adapt to various applications, capacity requirements and changing needs.
Maintenance is easy, with longer intervals between service. Moreover, you can reduce the use of water and CIP media.
Available in various sizes, the Unique Mixproof CIP valve ensures complete control of CIP media and, if required, can be mounted upside down.
How does the CIP valve work
The Unique Mixproof Alfa Laval CIP valve is a normally closed (NC) valve controlled from a remote location by means of compressed air. The double block and bleed valve has two independent plugs and a three-seal design to separate the process fluid from the cleaning media; the space between the seals forms a leakage chamber at atmospheric pressure under all operating conditions.
Leakage rarely occurs; however, if it should, the fluid flows into the leakage chamber and drains through the outlet for easy detection. When the valve is open, the leakage chamber is closed. The fluid then flows from one line to the other. The valve’s three-seal design minimizes spillage, and its self-cleaning function ensures the CIP media passes through surfaces that are sanitary.
With its balanced design, the mixproof Alfa Laval CIP valve primarily handles CIP media, ensuring complete control and eliminating water hammer. It can be mounted upside down. For increased holding pressures, support air can be applied.
Close at Hand カタログ
CAD ポータル
サービスについて
私たちの専任のグローバルサービスネットワークは、必要な時に必要な場所で部品と専門知識を提供します。稼働時間の向上、可用性の確保、最適化を実現することで、安心をお届けし、投資利益率を最大化するお手伝いをします。また、アルファ・ラバルのサービスを統合し、予測可能で安心できる運用を実現するサービス契約の作成も可能です。
お問い合わせやご質問がございましたら、お気軽にご連絡ください。
アプリケーション＆イノベーションセンターを訪問
Optimize™ by Alfa Laval
Protect your product
Get the product safety you need by eliminating the risk of cross-contamination and product loss, while ensuring efficient cleaning.
Boost your process
Enhance the reliability and flexibility of your process setup, with proven valve technology that matches the specific needs of your production.
Simplify your service
Minimize the risk of unplanned downtime, while spending as little time and resources as possible on routine maintenance.
Improve your sustainability
Limit your environmental impact, with greatly reduced water- and CIP media consumption and eliminated product loss.
Designed to maximize uptime in production, keeping service at a minimum.
Eliminate unnecessary product loss, thanks to spillage-free operation.
By adding the intelligence of Alfa Laval ThinkTop, you save up to 90% in water and cleaning media.
