HLSD-2

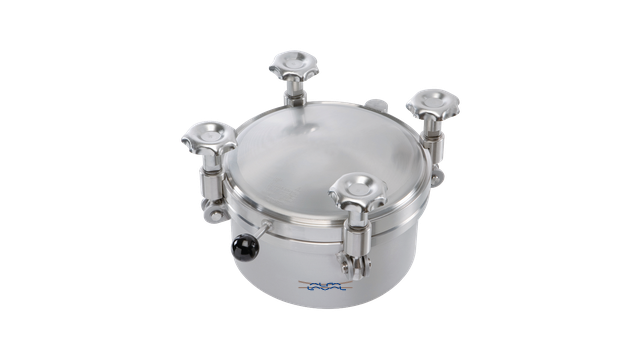

アルファ・ラバルのアクセス・タンクカバー（円形カバータイプ HLSD-2）は、加圧タンクや容器の上部開口部に確実に取り付けられる外開き式のマンホールカバーである。PED 2014/68/EU に基づき圧力容器への使用が承認されている。HLSD-2 は、タンク内部への迅速で容易、かつ利便性の高い出入りを実現するとともに、液面の上部または下部に設置可能な、密閉性を備えたアクセス手段を提供する。
タンク内部への迅速で容易、かつ利便性の高い出入りを実現
- あらゆるタンク用途に対応できる高い汎用性
- 衛生要件に配慮したハイジェニックデザイン
- 取り扱いが容易で作業性に優れる
アクセス・タンクカバー（円形カバータイプ HLSD-2）は、乳業、食品、飲料、バイオテクノロジー、製薬など、さまざまな産業における衛生用途向けに設計されている。
How does the HLSD-2 work?
Construction
The construction of Alfa Laval Tank covers varies, depending on the model.
To enable visual inspection and/or physical entry into the tank, the tank cover swings inwards, outwards or sideways, depending upon the model. Tank covers can be positioned above and below liquid level to meet different application requirements.
| Circular type C | None |
| LKD | Static |
| Oval type O | Static |
| Rectangular type R | Static |
Covering all tank needs
Alfa Laval offers a complete range of high-quality manhole covers to meet virtually every requirement. More than 50 different types of oval, circular and rectangular covers are available. These securely fit the openings of pressure, non-pressure and low-pressure tanks, both above and below the liquid level. A wide variety of sizes with frame heights between 60 mm and 200 mm is available. Tank covers can be fitted with different sight glasses and relief valves.
Hygienic design
For hygienic processes, there are two models from which to choose: the oval-shaped Alfa Laval LKD Tank cover and the circular Alfa Laval LKDC Tank cover in standard and pressure models for both above and below the liquid level. These comply with 3-A Sanitary Standards and the U.S. Food and Drug Administration (FDA) Declaration of Conformity.
Swing flexibility
Tank covers can be supplied with an inwards opening swing for inspection purposes as well as outwards and side-swing openings when physical entry is required. For washing and bottling machines, Alfa Laval has small rectangular and circular covers for use as hand doors.
Materials, surfaces and standards
Alfa Laval Tank covers are available in AISI 304 or AISI 316L stainless steel with EPDM, NBR, FPM or Q (silicone) seal materials. Surface finishes include electro-polished, brushed and acid pickled, and vary from Ra 0.4 to Ra 0.3 to meet the exceptionally high quality requirements of hygienic processes.
Alfa Laval Tank covers meet the requirements of the European Pressure Equipment Directive (EC unit verification), Module G and the American Society of Mechanical Engineers (ASME). Upon request, 3.1 Material Certification in accordance with EN 10204 can be supplied.
Close at Hand カタログ
CAD ポータル
サービスについて
私たちの専任のグローバルサービスネットワークは、必要な時に必要な場所で部品と専門知識を提供します。稼働時間の向上、可用性の確保、最適化を実現することで、安心をお届けし、投資利益率を最大化するお手伝いをします。また、アルファ・ラバルのサービスを統合し、予測可能で安心できる運用を実現するサービス契約の作成も可能です。
お問い合わせやご質問がございましたら、お気軽にご連絡ください。
アプリケーション＆イノベーションセンターを訪問
Optimize™ by Alfa Laval
Tank Cover Selection Guide
Alfa Laval offers more than 50 different types of high-quality tank covers that provide quick, easy and convenient entry to tank interiors. Finding the right tank cover for your tank doesn't have to be difficult. The main differences are explained in this selection guide.
Part of a broad tank equipment range
Alfa Laval offers a comprehensive range of tank equipment intended for hygienic applications in the dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals.
- Alfa Laval LKDC-LP
- Alfa Laval Type R
- Alfa Laval Type O
- Alfa Laval Type C
- Alfa Laval LKDS
- Alfa Laval LKDC
- Alfa Laval LKD
- Alfa Laval HLSD-2
For a broader tank equipment range, explorer the different product categories: rotary jet heads, rotary spray heads, tank accessories and tank covers.
