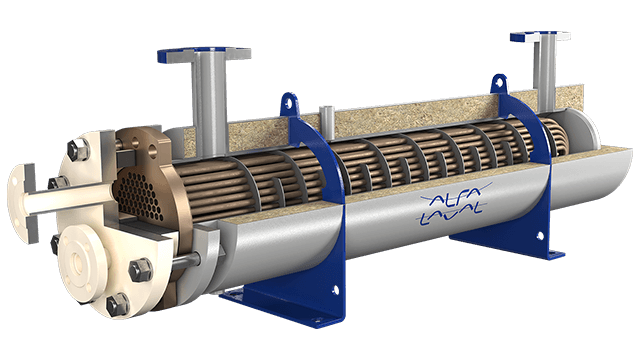

Aalborg MC

The Alfa Laval Aalborg MC is a compact shell-and-tube heat exchanger with U-tubes. It is designed to cool oil or steam by means of either fresh water or seawater. Its load capacities range from 10 kW to approximately 5000 kW, with design conditions (shell/tube) up to 13/13 bar(g) and 300/100°C. The Aalborg MC heat exchanger is approved by all major marine classification societies and is CE/PED approved.

Compact heat exchanger for oil/steam cooling

Efficiently cool oil and steam in marine and industrial applications
Adapt the heat exchanger design to your application using the wide range of customization options
Install horizontally or vertically to fit the available space

The Aalborg MC is primarily used for oil cooling or as a steam dump condenser on marine vessels, but it can be configured for other applications on request.

Technical specifications

Type

Heat exchanger with U-tubes

Application

Steam dumping, condensate cooling or cooling of oil or other fluids by means of fresh water, thermal oil or seawater

Capacity

Steam dumping: 400–5000 kg/h

Materials

Cu/Ni 90/10 alloy (or similar) for aggressive fluids in tubes

Other parts in carbon steel

Design conditions

Pressure (shell/tube): 13/13 bar(g)

Temperature (shell/tube): 300/100°C

Installation

Horizontal or vertical

Size

Shell: Ø100–400 mm

Tube bundles: 600–2000 mm (other lengths on request)

Flanges: EN1092-1, JIS 16K or SAE

Equipment

Three half-inch sockets on shell for mounting of safety valve, drain valve, air vent valve, temperature sensor or pressure sensor (more sockets possible if needed)
