Ballバルブ

私たちのボールバルブは、フルフローボディ設計で構築されており、製品がバルブを制限なく通過し、圧力低下が最小限に抑えられるようになっています。基本設計により、ピギングシステムを使用した清掃や製品回収が可能で、粘性液体や固形物または半固形物を含む液体に使用するのに理想的です。衛生用途のアルファ・ラバルボールバルブには、アルファ・ラバル SBV およびアルファ・ラバル Tri-Clover® の名称が付けられています。

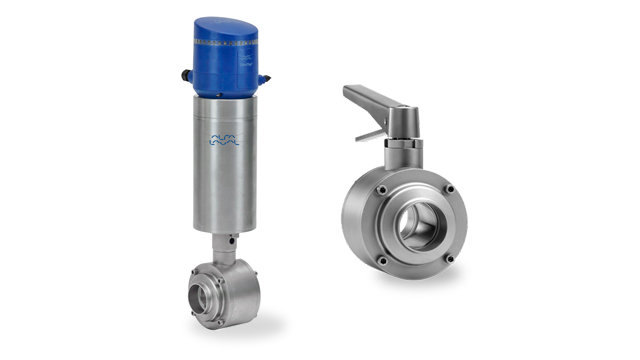

Alfa Laval 球阀-Alfa Laval Ball Valve

安全で経済的かつ耐久性に優れたフルボア衛生的ボールバルブ

  • FDA準拠の製品接触エラストマーを使用した安全で衛生的な設計と、汚染や損失を防ぐためのオプションのキャビティクリーニングまたはキャビティフィラーがあります。
  • フルボアでピギング可能な設計により、バルブボアと配管の製品回収と完全な清掃が最適化されます。
  • 特に高粘度液体を取り扱う際の圧力損失を最小限に抑えます。
  • 流れの制限がないため、大きな粒子を含む液体の取り扱いが容易になります。
  • 耐久性があり、ウォーターハンマーに強く、自動または手動制御を選択できる多用途な操作が可能です。

アルファ・ラバルのボールバルブを使用して、加工ラインを通じた完全なプロセスフローを通じて、改善されたプラントの生産性を確保してください。フルボア設計による単純な操作により、粘性の液体や粒子を含む液体が加工ラインを自由に流れることができます。

ボールバルブは、手動ハンドルまたはメンテナンスフリーの空気圧アクチュエーター付きで利用可能です。アクチュエーターは、自動設定機能を備えたインテリジェントなバルブ制御ユニットと組み合わせることができます。または、使用の容易さ、低圧力降下、最小化された製品損失、およびより高い収率を確保するために、プロセス要件に最適なボールバルブを選択するために私たちの専門家を利用してください。

How does ball valves work?

The Alfa Laval hygienic ball valve has a precision-made ball with a full bore positioned inside the valve body between two flanges and two PTFE valve seats. A 90° rotation of the valve stem opens or closes the valve. Either a pneumatic actuator or a manual handle with lockable positions enables valve operation.

Because the bore diameter matches the pipeline diameter, the viscous liquid or liquid containing particles is able to flow unobstructed through the valve and processing line with minimal pressure drop and minimal product loss. When the valve closes, the ball returns to its original position, tightly sealing the passage. Two inspection holes in the bonnet, connecting the valve body and actuator, make it easy to check that the stem seal is tight.

Along with the durable ball, a specially selected PTFE-grade material secures long valve lifetime. The use of spring-loaded, self-adjusting seal rings ensures reliable valve stem sealing. Valve screws enable assembly and disassembly for easy maintenance.



.

製品概要について


.
.

GPT 「Close at hand」カタログ

アルファ・ラバルの衛生的なバルブは、プロセスラインを通じて流体の最も効率的な流れを保証します。私たちの「Close at hand」カタログは、プロセスに最適なフローソリューションを決定するために必要なすべての情報を詳細に説明しています。これにより、交差汚染のリスクがなくなり、安全性が向上し、稼働時間とコスト節約が増え、生産性が高まります。
