AHRI certified gasketed plate heat exchangers

AlfaQ range

Alfa Laval AlfaQ™ heat exchangers are used for HVAC applications and are certified according to the AHRI Liquid to Liquid Heat Exchangers (LLHE) Certification Program which ensures thermal performance according to manufacturers’ published specifications. AHRI certification is the only global, third-party performance certification for plate heat exchangers.

HVAC applications:

  • District cooling substations
  • Ice-storage system
  • Data center cooling
  • Free cooling systems



Eliminate uncertainty about thermal performance

For many years it has been a common practice in the plate heat exchanger industry to “adjust” or tweak heat duty calculations. Manufacturers manipulate calculations so that component costs can be minimized and a smaller plate heat exchanger can be offered at an attractive price. However, the result is that end customers get under-dimensioned heat exchangers, leading to higher system-wide energy use, higher operating costs and compromised environmental performance.

These “recalculations” make it harder to choose a heat exchanger that will provide the required performance and increases the risk that it will underperform. It creates uncertainty for everyone involved in recommending, selecting and using heat exchangers – consultants, specifiers and end customers – and undermines confidence in the industry as a whole.

Certification ensures certainty about performance

There is one sure way to ensure certainty right from the start – AHRI performance certification.

The Air-Conditioning, Heating, and Refrigeration Institute (AHRI) is a non-profit organization, and the only independent organization that certifies the performance of liquid-to-liquid heat exchangers globally.

The AHRI Certification Program provides third-party verification of thermal performance – it gives independent assurance that the plate heat exchanger will perform in accordance with the manufacturer’s published ratings.

For more information on AHRI certification visit the official AHRI website.



How AlfaQ works

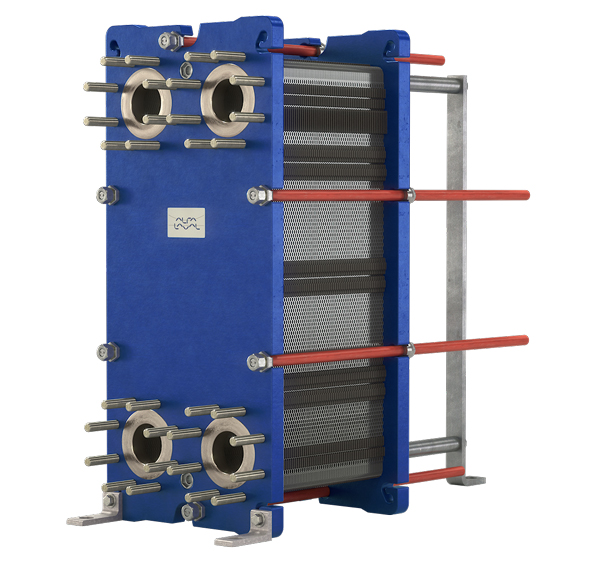

The heat transfer area of a gasketed plate-and-frame heat exchanger consists of a series of corrugated plates, assembled between the frame and pressure plates, which retain the design pressure. The sealing between the plates is made of gaskets. For the highest thermal performance and to enable a very close temperature approach, fluids normally run counter-currently through the heat exchanger.

AlfaQ is available with various pressing depths and angles of the chevron pattern and various shapes of the corrugation which are carefully designed and selected to achieve optimum performance. The CurveFlow and the chocolate pattern distribution area are two design features available that ensure fluids are evenly distributed across the entire plate. The result is that the entire heat transfer surface is fully utilized and stagnant zones that can result in fouling are avoided.

High flow turbulence between plates results in higher heat transfer; however, the consequence is pressure drop. Our thermal design engineers can help you design and select the model and configuration that is suitable for your application needs while delivering maximum thermal performance and minimizing pressure drop.

Liquid/Liquid GPHE

Steam heater GPHE

2-pass GPHE



Features that matter

It's important to understand that all gasketed plate heat exchangers are not the same. The features highlighted below are important components to look for in a GPHE, and when combined, these features offer extensive benefits, such as reduced total cost of ownership, higher efficiency and increased staff safety.

Distribution area - CurveFlow

What is it?

One of the most important features of a plate heat exchanger, the distribution area ensures full use of the heat transfer area and minimizes fouling.

Risks with other designs

An inefficient distribution area with uneven flow causes maldistribution and fouling build up.

ClipGrip gasket

What is it?

A glue free gasket with superior alignment that ensures a perfect seal and trouble-free maintenance. Fastening to the plate is improved by having five fastening points.

Risks with other designs

Other gasket designs, such as snap-in gaskets, only have one fastening point to the plate. If this one point is lost, there is no gasket fastening function.

Swing feet

What are they?

Swing feet can simply be swung to the side for service, allowing for quick and easy opening of the unit while maintaining its seismic rating.

Risks with other designs

Most plate heat exchangers have feet that are bolted or welded to the frame and/or pressure plate. These feet are more likely to get stuck, and they also have to be completely removed for servicing.

Alignment system - corner guiding

What is it?

Corner guiding keeps plates aligned throughout the entire plate package during closing of the heat exchanger. The plates are designed with corners that lead the plates into position and help stabilize the plate pack during the tightening procedure.

Risks with other designs

The lack of a proper alignment system may allow the plate pack to move in any direction, leading to wavy plate packs with leakage problems.

Pressure plate roller

What is it?

The pressure plate must be easy to move and slide along the carrying bar in order to gain access to the plate pack. The most common solution is a roller on top of the carrying bar, making it easy and less time consuming to conduct service. The roller should be made out of metal to be able to carry the weight of the pressure plate.

Risks with other designs

The mechanical solution of the roller can be more or less robust. The risk is a pressure plate that is jammed and impossible to move when it is time to conduct service.

Bearing box

What is it?

A device between the tightening bolt head and the frame that reduces friction forces and makes service easier.

Risks with other designs

Opening and closing the PHE without bearing boxes is time consuming and increases the risk of paint damage, which can lead to corrosion damage.

Five point alignment

What is it?

Keeps the plates aligned during closing of the plate heat exchanger that facilitates service.

Risks with other designs

Many alignment systems do not close the vertical gap between the carrying bar and the plate, leading to wavy plate packs with leaking problems.



Servicing your heat exchangers

Plate heat exchangers have an essential role in most applications. If they function poorly, they may lead to lower product quality, reduced safety and higher energy costs. And if they fail, they can lead to costly downtime and major losses in production. This makes it important to perform maintenance – and important to do it correctly.

Click here to learn more

Contact us for more information.
